Module 3: Medicare Advantage Quality and Regression Discontinuity

class: center, middle, inverse, title-slide

.title[
# Module 3: Medicare Advantage Quality and Regression Discontinuity
]
.subtitle[
## Part 2: Regression Discontinuity
]
.author[
### Ian McCarthy | Emory University
]
.date[
### Econ 470 & HLTH 470
]

---

<style type="text/css">
.remark-slide-content {
    font-size: 30px;
    padding: 1em 2em 1em 2em;
}
.remark-code {
  font-size: 15px;
}
.remark-inline-code {
    font-size: 20px;
}
</style>

# Motivation

- Basic idea: Observations are <b>identical</b> just above/below threshold
- Some motivation from [Causal Inference: The Mixtape](https://mixtape.scunning.com/06-regression_discontinuity)

---
# Motivation
Highly relevant in "rule-based" world...
- School eligibility based on age cutoffs
- Program participation based on discrete income thresholds
- Performance scores rounded to nearest integer

---
# Required elements

1. Score
2. Cutoff
3. Treatment

---
# Types of RD
1. Sharp regression discontinuity
  - those above the threshold guaranteed to participate<br>

--
<br>
2. Fuzzy regression discontinuity
  - those above the threshold are eligible but may not participate

---
# Sharp RD
<br>
`$$W_{i} = 1(x_{i}>c) = \begin{cases}
    1 & \text{if} & x_{i}>c \\
    0 & \text{if} & x_{i}<c
\end{cases}$$`

<br>
- `$x$` is "forcing variable"
- `$c$` is the threshold value or cutoff point

---
# Sharp RD Scatterplot
<img src="03-ma-quality2_files/figure-html/rd-plot1-1.png" style="display: block; margin: auto;" />

---
# Sharp RD Linear Predictions
<img src="03-ma-quality2_files/figure-html/rd-plot2-1.png" style="display: block; margin: auto;" />

---
# Sharp RD Linear Predictions
<img src="03-ma-quality2_files/figure-html/rd-plot3-1.png" style="display: block; margin: auto;" />

---
# Different averages

- Mean difference around threshold of 0.2, 3.97 - 2.25 = 1.72
- Mean overall difference, 3.74 - 1.49 = 2.25

---
# More generally
- Running variable may affect outcome directly
- Focusing on area around cutoff does two things:<br>

--
<br>
  1. Controls for running variable
  2. "Controls" for unobserved things correlated with running variable and outcome

---

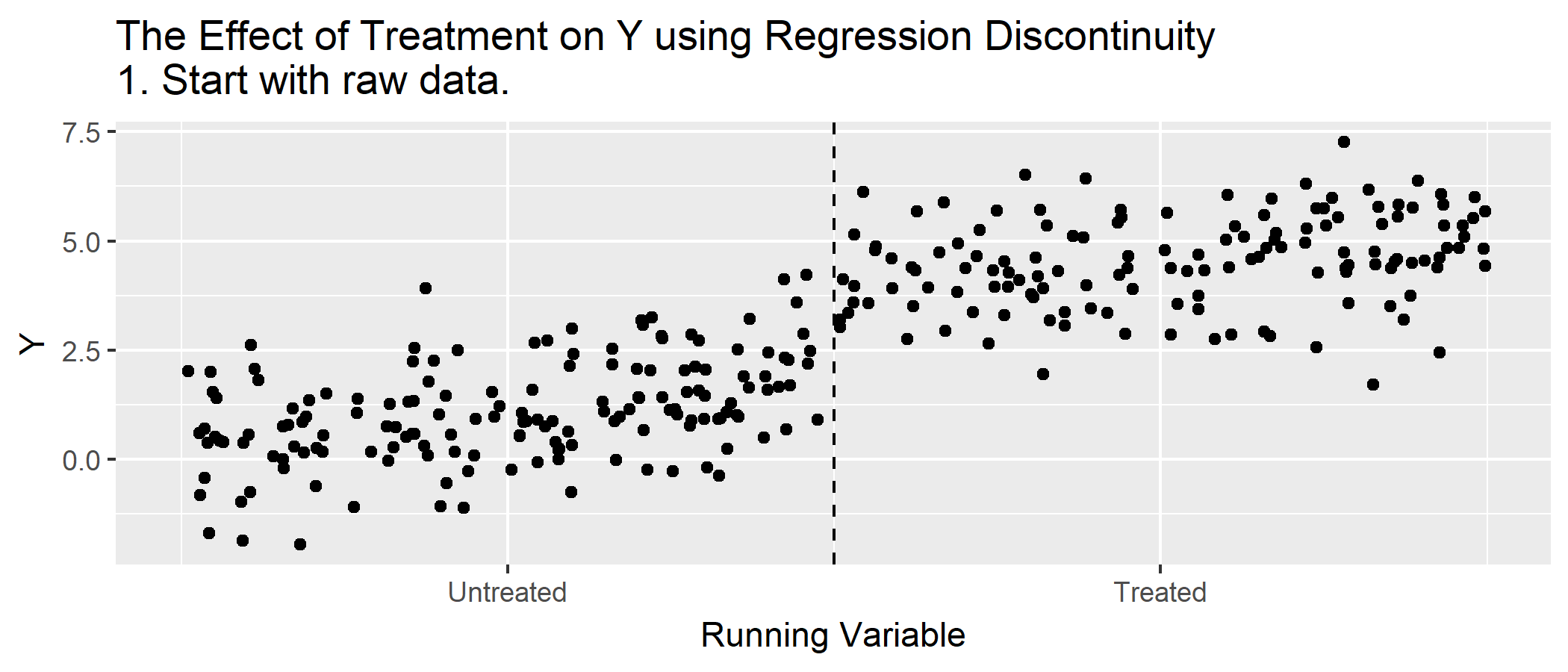

# Animations!

.center[
  ![:scale 900px](pics/rd_animate.gif)
]

---
# Estimation
Goal is to estimate `$E[Y_{1}|X=c] - E[Y_{0}|X=c]$`
1. Trim to reasonable window around threshold ("bandwidth"), `$X \in [c-h, c+h]$`
2. Transform running variable, `$\tilde{X}=X-c$`
3. Estimate regressions...
  - Linear, same slope: `$y = \alpha + \delta D + \beta \tilde{X} + \varepsilon$`
  - Linear, different slope: `$y = \alpha + \delta D + \beta \tilde{X} + \gamma W\tilde{X} + \varepsilon$`
  - Nonlinear: add polynomials in `$\tilde{X}$` and interactions `$W \tilde{X}$`

---
class: inverse, center, middle
name: rd_practice

# Regression Discontinuity in Practice

---
# RDs "in the wild"
Most RD estimates follow a similar set of steps:
1. Show clear graphical evidence of a change around the discontinuity (bin scatter)
2. Balance above/below threshold (use baseline covariates as outcomes)
3. Manipulation tests
4. RD estimates
5. Sensitivity and robustness:
    - Bandwidths
    - Order of polynomial
    - Inclusion of covariates

---
# 1. Graphical evidence

---
class: clear

Before presenting RD estimates, **any** good RD approach first highlights the discontinuity with a simple graph. We can do so by plotting the average outcomes within bins of the forcing variable (i.e., binned averages), `$$\bar{Y}_{k} = \frac{1}{N_{k}}\sum_{i=1}^{N} Y_{i} \times 1(b_{k} < X_{i} \leq b_{k+1}).$$`<br>

--
The binned averages helps to remove noise in the graph and can provide a cleaner look at the data. Just make sure that no bin includes observations above and below the cutoff!

---
# Binned average calculation

```r
library(rdrobust)
rd.result <- rdplot(rd.dat$Y, rd.dat$X,
                    c=1,
                    title="RD Plot with Binned Average",
                    x.label="Running Variable",
                    y.label="Outcome")
```

```r
bin.avg <- as_tibble(rd.result$vars_bins)

plot.bin <- bin.avg %>% ggplot(aes(x=rdplot_mean_x,y=rdplot_mean_y)) +
  geom_point() + theme_bw() +
  geom_vline(aes(xintercept=1),linetype='dashed') +
  scale_x_continuous(
    breaks = c(.5, 1.5),
    label = c("Untreated", "Treated")
  ) +
  xlab("Running Variable") + ylab("Outcome")
```

---
# Binned average plot
<img src="03-ma-quality2_files/figure-html/unnamed-chunk-2-1.png" style="display: block; margin: auto;" />

---
# With and without binning
.pull-left[
<img src="03-ma-quality2_files/figure-html/unnamed-chunk-3-1.png" style="display: block; margin: auto;" />
]

.pull-right[
<img src="03-ma-quality2_files/figure-html/unnamed-chunk-4-1.png" style="display: block; margin: auto;" />
]

---
# Selecting "bin" width
1. Dummy variables: Create dummies for each bin, regress the outcome on the set of all dummies and form r-square `$R^{2}_{r}$`, repeat with double the number of bins and find r-square value `$R^{2}_{u}$`, form F-stat, `$\frac{R^{2}_{u}-R^{2}_{r}}{1-R^{2}_{u}}\times \frac{n-K-1}{K}$`.

2. Interaction terms: Include interactions between dummies and the running variable, joint F-test for the interaction terms

If F-test suggests significance, then we have too few bins and need to narrow the bin width.

---
# 2. Balance

---
# Assessing balance

- If RD is an appropriate design, passing the cutoff should **only** affect treatment and outcome of interest
- How do we test for this?
    - Covariate balance
    - Placebo tests of other outcomes (e.g., t-1 outcomes against treatment at time t)

---
# 3. Manipulation tests

---
# Manipulation of running variable

- Individuals should not be able to **precisely** manipulate running variable to enter into treatment
- Sometimes discussed as "bunching"
- Test for differences in density to left and right of cutoffs (`rddensity` in Stata and R)
- Permutation tests proposed in Ganong and Jager (2017)

---
# What if bunching exists?

- Gerard, Rokkanen, and Rothe (2020) suggest partial identification allowing for bunching
- Can also be used as a robustness check
- `rdbounds` in Stata and R
- Assumption: bunching only moves people in one direction

---
# 4. RD Estimation

---
# Baseline RD estimates

Start with the "default" options
- Local linear regression
- Optimal bandwidth
- Uniform kernel

---
# Selecting bandwidth in local linear regression
The bandwidth is a "tuning parameter"
- High `$h$` means high bias but lower variance (use more of the data, closer to OLS)
- Low `$h$` means low bias but higher variance (use less data, more focused around discontinuity)<br>

Represent bias-variance tradeoff with the mean-square error, `$$MSE(h) = E[(\hat{\tau}_{h} - \tau_{RD})^2]=\left(E[\hat{\tau}_{h} - \tau_{RD}] \right)^2 + V(\hat{\tau}_{h}).$$`

---
# Selecting bandwidth
In the RD case, we have two different mean-square error terms:
1. "From above", `$MSE_{+}(h) = E[(\hat{\mu}_{+}(c,h) - E[Y_{1i}|X_{i}=c])^2]$`
2. "From below", `$MSE_{-}(h) = E[(\hat{\mu}_{-}(c,h) - E[Y_{0i}|X_{i}=c])^2]$`<br>

Goal is to find `$h$` that minimizes these values, but we don't know the true `$E[Y_{1}|X=c]$` and `$E[Y_{0}|X=c]$`. So we have two approaches:
1. Use **cross-validation** to choose `$h$`
2. Explicitly solve for optimal bandwidth

---
# Cross-validation
Essentially a series of "leave-one-out" estimates:
1. Pick an `$h$`
2. Run regression, leaving out observation `$i$`. If `$i$` is to the left of the threshold, we estimate regression for observations within `$X_{i}-h$`, and conversely `$X_{i}+h$` if `$i$` is to the right of the threshold.
3. Predicted `$\hat{Y}_{i}$` at `$X_{i}$` (out of sample prediction for the left out observation)
4. Do this for all `$i$`, and form `$CV(h)=\frac{1}{N}\sum (Y_{i} - \hat{Y}_{i})^2$` <br>

Select `$h$` with lowest `$CV(h)$` value.

---
# Back to simulated data
<img src="03-ma-quality2_files/figure-html/rd-real1-1.png" style="display: block; margin: auto;" />

---
# Back to simulated data

```r
ols <- lm(Y~X+W, data=rd.dat)

rd.dat3 <- rd.dat %>%
  mutate(x_dev = X-1) %>%
  filter( (X>0.8 & X <1.2) )
rd <- lm(Y~x_dev + W, data=rd.dat3)
```
- True effect: 1.5
- Standard linear regression with same slopes: 1.68
- RD (linear with same slopes): 1.58

---
# RD with built-in commands
.pull-left[

```
## Sharp RD estimates using local polynomial regression.
##
## Number of Obs.                 1000
## BW type                       mserd
## Kernel                   Triangular
## VCE method                       NN
##
## Number of Obs.                  482          518
## Eff. Number of Obs.             146          187
## Order est. (p)                    1            1
## Order bias  (q)                   2            2
## BW est. (h)                   0.330        0.330
## BW bias (b)                   0.476        0.476
## rho (h/b)                     0.693        0.693
## Unique Obs.                     482          518
##
## =============================================================================
##         Method     Coef. Std. Err.         z     P>|z|      [ 95% C.I. ]
## =============================================================================
##   Conventional     1.593     0.108    14.732     0.000     [1.381 , 1.805]
##         Robust         -         -    12.530     0.000     [1.351 , 1.852]
## =============================================================================
```
]

.pull-right[
Cattaneo et al. (2020) argue:
- Report conventional point estimate
- Report robust confidence interval
]

---
# 5. Robustness and sensitivity

---
# Other options

- Different bandwidths
- Different kernels or polynomials
- Role of covariates in RD estimates

---
# Pitfalls of polynomials

- Assign too much weight to points away from the cutoff
- Results **highly** sensitive to degree of polynomial
- Narrow confidence intervals (over-rejection of the null)

For more discussion, see this [World Bank Blog post](https://blogs.worldbank.org/impactevaluations/curves-all-wrong-places-gelman-and-imbens-why-not-use-higher-order-polynomials-rd)

---
class: inverse, center, middle

# Fuzzy RD

---
# The Idea
"Fuzzy" just means that assignment isn't guaranteed based on the running variable. For example, maybe students are much more likely to get a scholarship past some threshold SAT score, but it remains possible for students below the threshold to still get the scholarship.

- Discontinuity reflects a jump in the probability of treatment
- Other RD assumptions still required (namely, can't manipulate running variable around the threshold)

---
# Fuzzy RD is IV
In practice, fuzzy RD is employed as an instrumental variables estimator
- Difference in outcomes among those above and below the discontinuity divided by the difference in treatment probabilities for those above and below the discontinuity,<br>
`$E[Y_{i} | D_{i}=1] - E[Y_{i} | D_{i}=0] = \frac{E[Y_{i} | x_{i}\geq c] - E[Y_{i} | x_{i}< c]}{E[D_{i} | x_{i}\geq c] - E[D_{i} | x_{i}<c]}$`
- Indicator for `$x_{i}\geq c$` is an instrument for treatment status, `$D_{i}$`.
- Implemented with `rdrobust` and `fuzzy=t` option
